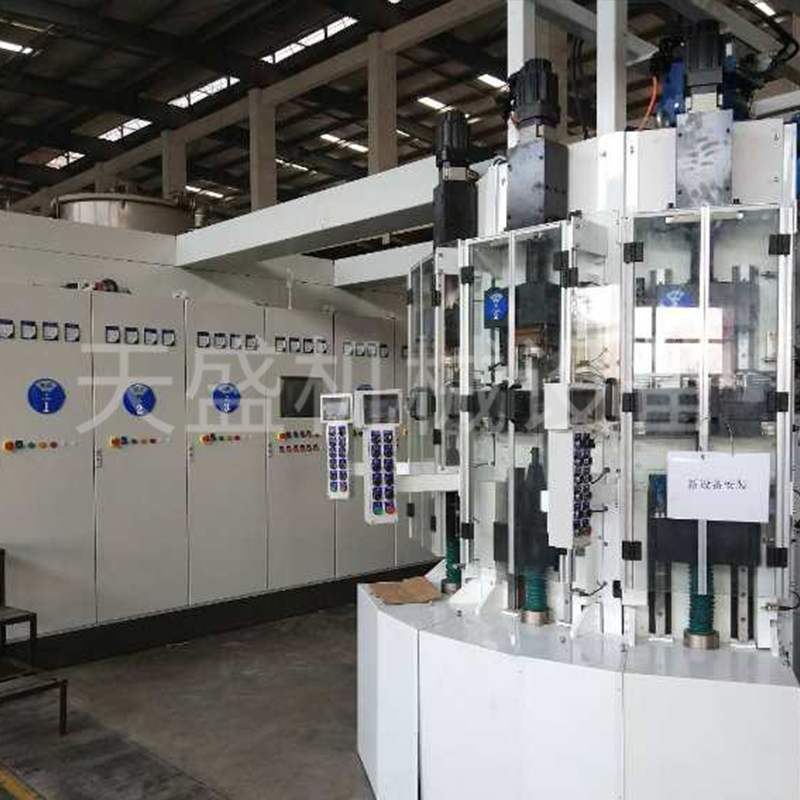

Electric pier machine
Taxonomy：Valve roughing equipment
- Number of clicks：
- Release date：2018/11/01
- Message
- Content
- Parameter
- Video
Ｎumber | Oroject | Technical Parameters |
1 | Rod diameter | 5mm-16mm |
2 | Length | 130mm-450mm |
3 | Top forging stroke | max350mm |
4 | Garlic range | 60-200mm |
5 | Transformer power | 50KAV |
6 | Output current | 10000A |
7 | Transformer cooling method | Water cooling |
8 | Electrode cooling method | Water cooling |
9 | Top forging cylinder drive | Hydraulic, pneumatic, servo electric (three choices one) |
10 | Anvil cylinder driving method | Servo motor control and ball screw |
11 | Sensor accuracy | Accuracy 0,005mm |
12 | Control the upset parameters | Displacement, force, energy |
13 | Control anvil return parameter | Displacement, speed |
14 | Upsetting time | 5mm is an example for 10-20 seconds (the length of the bar is different) |
15 | Beat | 4.0-6.5 seconds |
16 | water | Soft water, 0.4MPa or more |
17 | Electricity | 380V |
18 | Ｇas | 0.5Mpa or more, clean air source |
